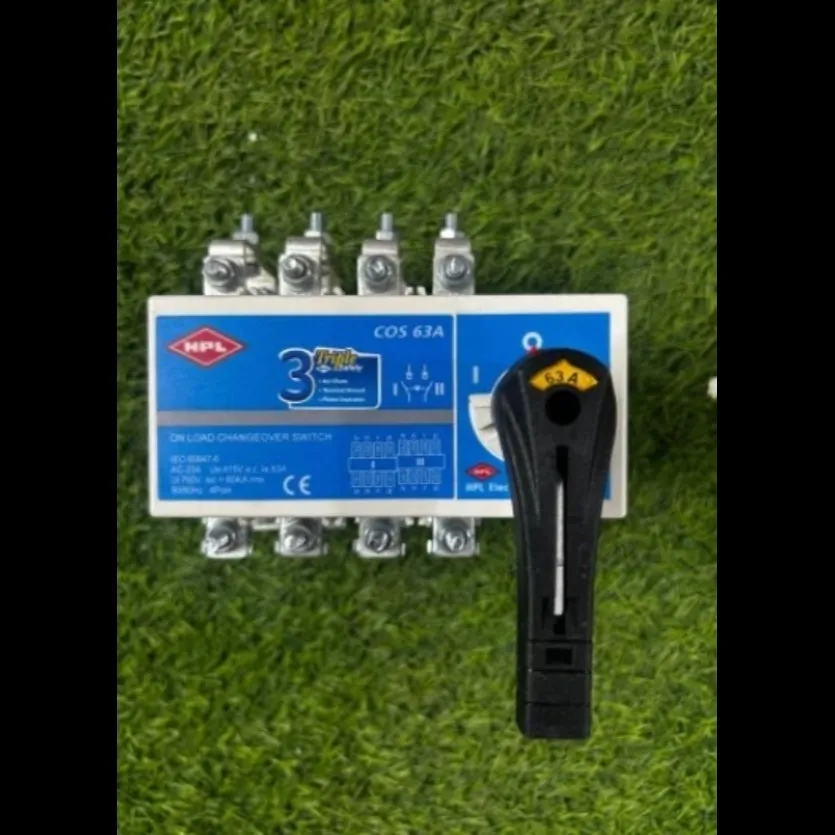

HPL On Load Change Over Switch (Open Type) – Specifications
ParameterSpecificationBrandHPL Electric & Power Ltd.ProductOn Load Change Over Switch (Open Type)Current Rating63A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 630A, 800A, 1000A, 1250A, 1600A, 2000APoles2 Pole, 3 Pole, 4 PoleRated Voltage415V ACRated Insulation Voltage (Ui)690V ACRated Frequency50/60 HzUtilization CategoryAC-22A / AC-23A (Model Dependent)OperationManual, Centre OFF PositionMountingPanel Mount (Open Type)SwitchingI – 0 – II (Source Changeover)Mechanical LifeUp to 10,000 OperationsElectrical LifeUp to 1,500–2,000 Operations (Load Dependent)Terminal MaterialTinned CopperContactsSilver Alloy ContactsDegree of ProtectionIP20 (Open Type)StandardsIEC 60947-3 / IS 13947-3Ambient Temperature-5°C to +55°CInstallationIndoor Panel Mounting
Features
- Quick Make & Quick Break Mechanism
- Positive Contact Indication
- High Short Circuit Withstand Capacity
- Low Power Loss
- Long Mechanical Life
- Easy Installation & Maintenance
- Suitable for DG–Mains Changeover
- Compact Design
- Padlocking Facility (Model Dependent)
Applications
- LT Distribution Panels
- Power Control Centres (PCC)
- Motor Control Centres (MCC)
- AMF & DG Panels
- Industrial Plants
- Commercial Buildings
- Hospitals
- Data Centres
- Residential Complexes
