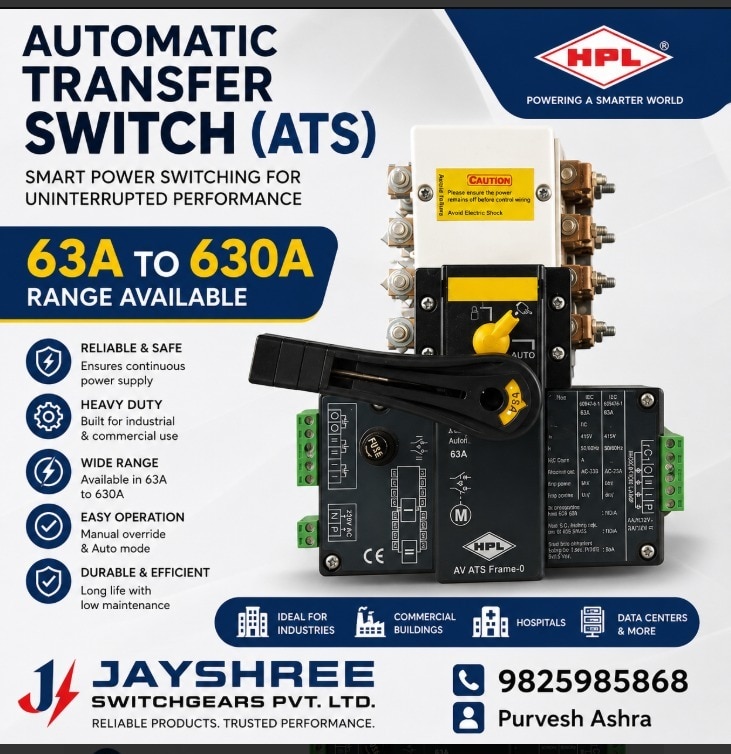

HPL Automatic Transfer Switch (ATS) 63A TO 630A

ATS – Motorised Changeover

Features:

Range

AC 23A 415VAC 4 Pole 40A to 1600A in 4 frame sizes.

ATS without external control wiring, only Power Terminal need to be connected

No external component needed for power input for Motor or Logic to command Motor movement

Avert devastations by short circuits by Fire Protection & earthquake protection system linkage

Measurement of Energy – Active & reactive

over 45 parameters including Voltage, Current, Frequency, Energy, MD with Data & Time, RunHour, Power ON Hour for both sources

Communication via RS485 MODBUS, Optional Ethernet Communication

Remote operation through PLC/SCADA/EMS

Cloud/IoT connected with Software, PC Software & Mobile app

Operating control voltage 60V DC or 230Vac (other voltages on request)

A strong, reliable double break mechanism for safe changeover of sources remotely.

The only Switch with RoHS Compliance & studded with protections like Phase Barriers, Source Separators, Terminal Cover.

The only ATS with Protection against Arc.

The only switch with self-extinguishing reinforced fiberglass body to withstand more than 400°C

AV ATS is True 4 Pole switch with AC 23A & AC-31 B Load switching duty.

The quick make & break feature independent of the Motor or Human Torque

The Modular motor module reduces ATS Down Time during maintenance

General Characteristics

The HPL AV ATS changeover switch incorporate 3 stable positions (1-0-11) changeover ensuring isolation of 2 asynchronous power supply. All positions are interlocked.

AV ATS Changeover Switches are provided with Emergency Handle arrangement for manual operation

Auxiliary contacts is provided on the Motor Module and also on the switchfor position signal or prebreak control.
