on load changeover
In stock
Description

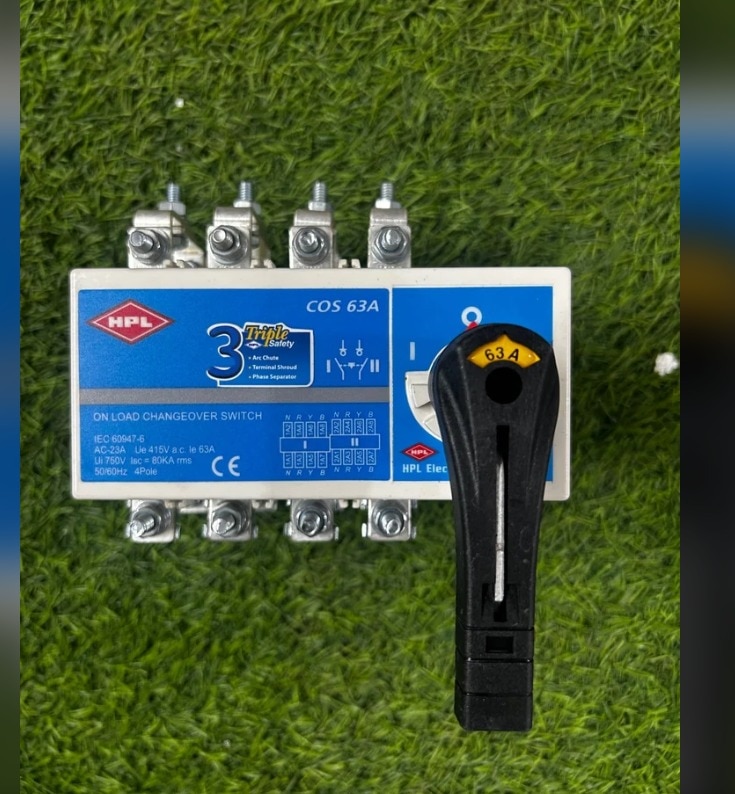

Onload Changeover Switch
Features:
Range 63- 3150A in 6 frame sizes Conforming to IS 13947 part 3/93.
Range 40-630A 1000V DC also available
Available in 3P & 4P versions.
4P with 100% Neutral.
Arc Chute plates to quench arc within the switch and also enhance contact life.
Compact body of fiber glass, reinforced polyester resin.
Increased thermal withstand capacity of switch body.
Enhanced Insulation voltage
High Mechanical & Electrical life.
Total safety with Terminal cover, Source Separator and Phase Barrier as standard feature.
Mounting possible in both horizontal and vertical position.
Available in Open Execution and Sheet Steel enclosures.
Prewired Auxiliary contacts with 1NO 1NC.
2NO 2NC also available.
Specifications
| Range 63- 3150A in 6 frame sizes Conforming to IS 13947 part 3/93. | Range 40-630A 1000V DC also available |
|---|---|
| Mounting possible in both horizontal and vertical position. | Available in Open Execution and Sheet Steel enclosures. |
| Prewired Auxiliary contacts with 1NO 1NC. | 2NO 2NC also available. |
| Increased thermal withstand capacity of switch body. | Enhanced Insulation voltage |
| 4P with 100% Neutral. | Available in 3P & 4P versions. |
| Arc Chute plates to quench arc within the switch and also enhance contact life. | Compact body of fiber glass, reinforced polyester resin. |
| High Mechanical & Electrical life. | Total safety with Terminal cover, Source Separator and Phase Barrier as standard feature. |
